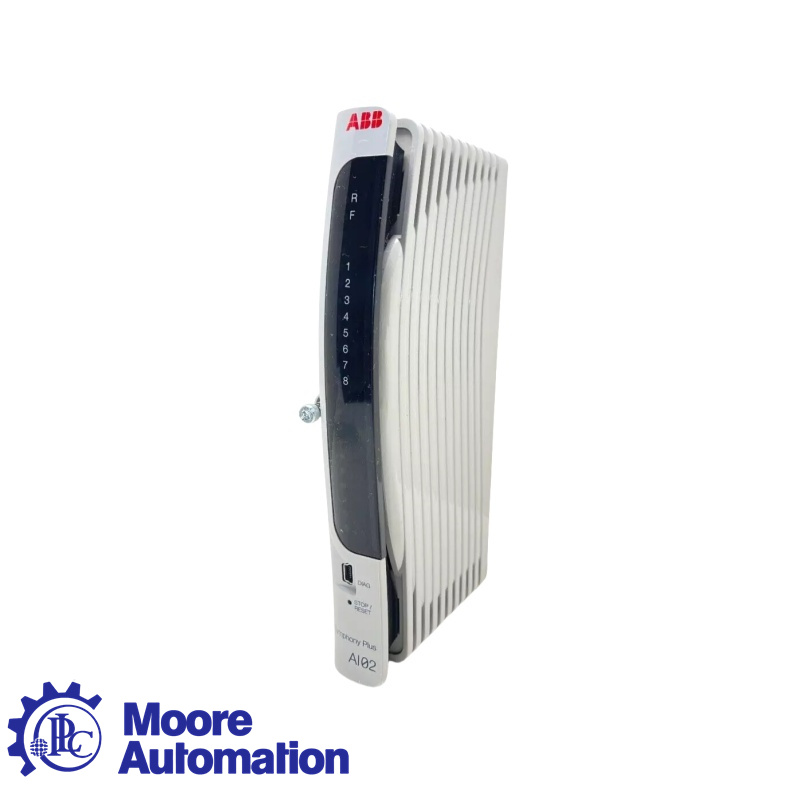

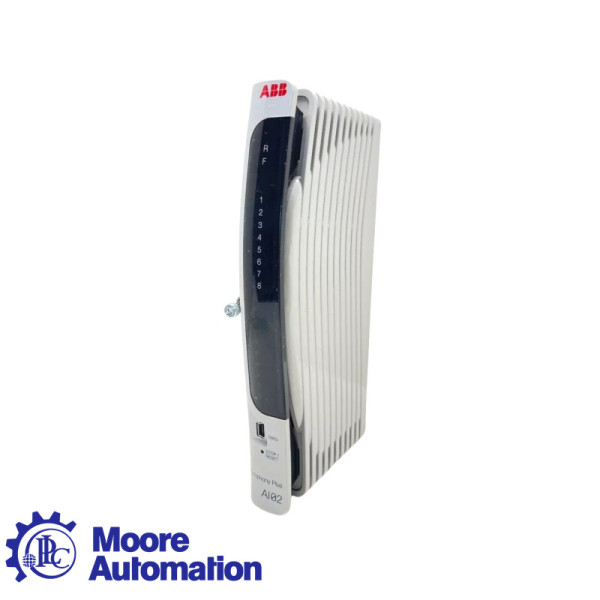

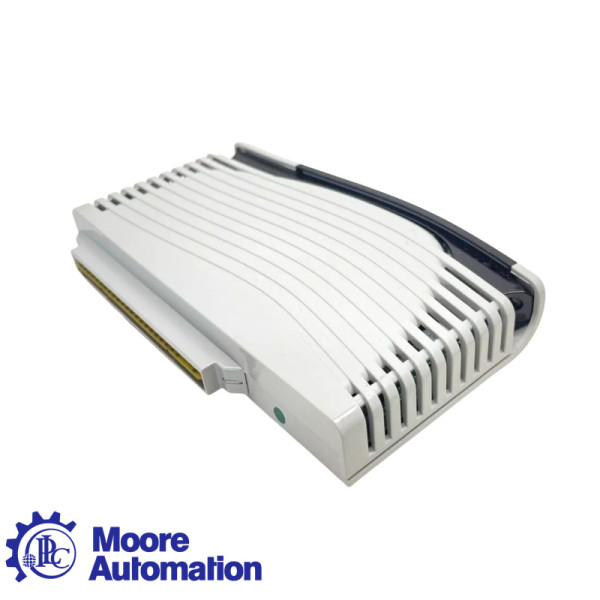

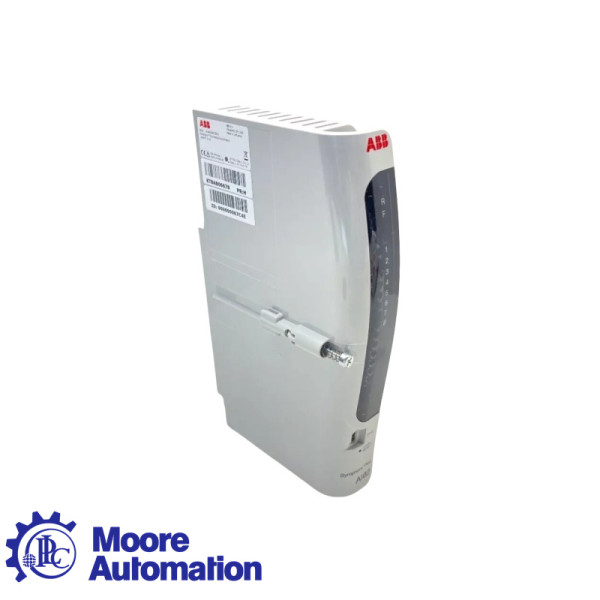

ABB AI02 Analog Input module BRAND NEW
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameABB AI02 Analog Input module BRAND NEW
- Item NO.AI02
- Weight0.2500 kg = 0.5512 lb = 8.8185 oz
- CategoryDCS
- BrandABB
- Creation Time2025-01-02
Specifications
|
|
The AI02 analog input module can handle up to 16 high-level, group isolated analog input field signals. Each channel can be independently configured in the range of 4 to 20mA or 1 to+5VDC. FC 221 (I/O device definition) sets AI module operating parameters, with each input channel configured using FC 222 (analog input channel) to set individual input channel parameters such as engineering units, high/low alarm limits, etc. |
|
|
Brand: ABB Part number: AI02 Original from: SWEDEN Description: Analog Input module
Signal specification: AI: 4…20 mA,or 1…+5 VDC Life cycle status: ACTIVE Number of channels: 16 Signal type: AI with HART Form factor: Standard (190 mm) Mounting: Horizontal Row or Vertical Column MTBF (per MIL-HDBK-217-FN2): PR C: 132,367 Hours MTTR (Hours): 1 Hours Module power requirements: 24 VDC ± 10%, 100 mA typical Module power connection: POWER TB on cHBX01L or VBX01T Field IO power: 24 VDC ± 10%, 20 mA per CH Width: 27 mm Depth: 106 mm Height: 190 mm
Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
Features and benefits
1. 16 independently configurable channels supporting:
2. 4 to 20 mADC or 1 to +5 VDC
3. Up to 24 HART v5.4 secondary variables Total
4. Max 4 sec vars per analog input CH
5. Sec HART variables available to control logic
6. 12 to 16-Bit (with polarity) A/D resolutionV
7. A/D update of all 16 Channels in 100 msecs
8. Accuracy is ±0.1 % of Full Scale Range where FSR = 25 mA or 6.25 VDC
