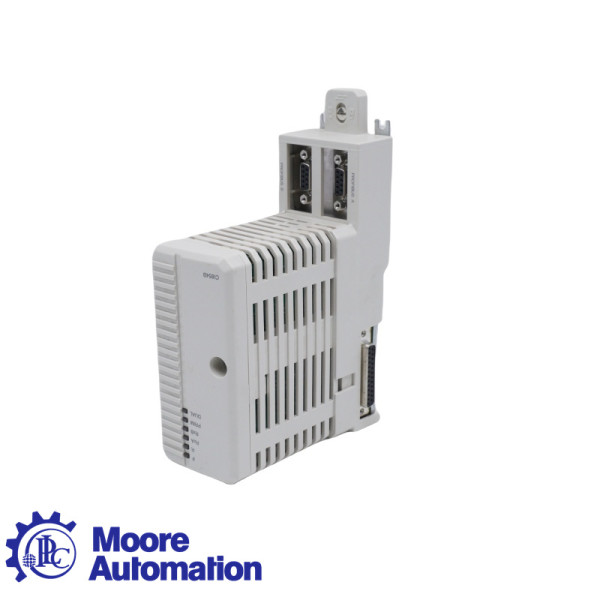

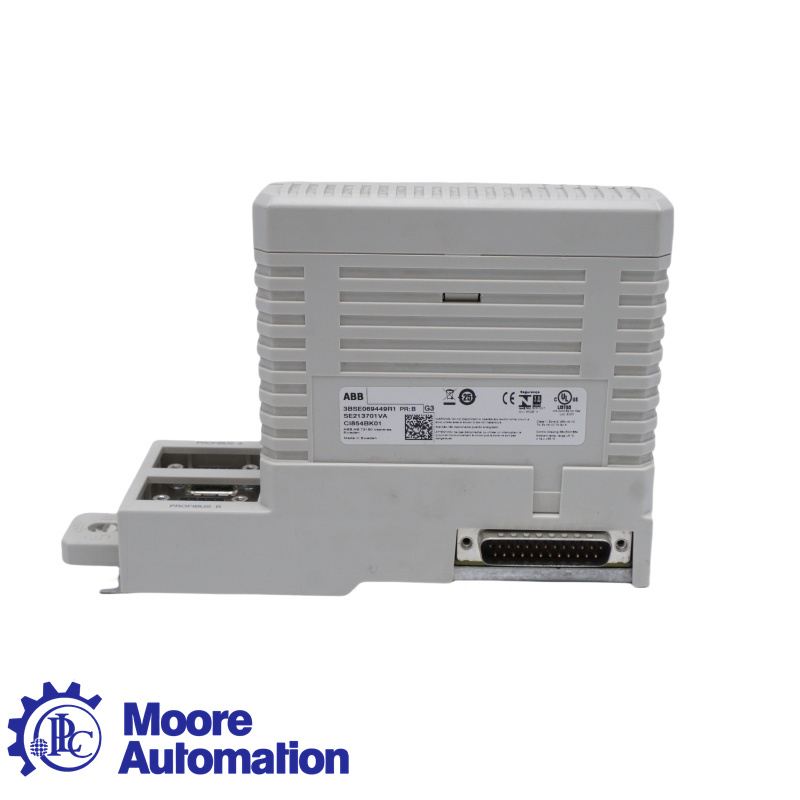

ABB CI854BK01 PROFIBUS-DP/V1 Interface Module NEW
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameABB CI854BK01 PROFIBUS-DP/V1 Interface Module NEW
- Item NO.CI854BK01
- Weight0.7000 kg = 1.5432 lb = 24.6918 oz
- CategoryDCS
- BrandABB
- Creation Time2025-01-05
PROFIBUS DP is a high-speed multi-purpose bus protocol (up to 12Mbit/s) used to interconnect field devices such as remote I/O, drivers, low-voltage electrical equipment, and controllers. PROFIBUS DP can be connected to AC 800M through the CI854B communication interface. CI854B includes two PROFIBUS ports for line redundancy and also supports PROFIBUS primary redundancy.
Product info
|
|
Brand: ABB Part number: CI854BK01 Original from: Sweden Description: PROFIBUS-DP/V1 Interface Module Availability: In Stock
Communication protocol: PROFIBUS DP-V1 Master or slave: Master Number of channels: 2 Transmission speed: 9.6 - 12 000 kbit/s Max units on CEX bus: 12 Connector: DB female (9-pin ) 24 V consumption typ.: 190 mA Width: 59 mm (2.3 in.) Height: 185 mm (7.3 in.) Depth: 127.5 mm (5.0 in.)
Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
PROFIBUS-DP communication supports primary redundancy by using two CI854B communication interface modules. The main redundancy can be combined with CPU redundancy and CEXbus redundancy (BC810). These modules are installed on DIN rails and directly connected to S800 I/O systems and other I/O systems, including all PROFIBUS DP/DP-V1 and Foundation fieldbus proficiency systems.
Features and benefits
1. Used for connecting remote I/O and fieldbus instruments via PROFIBUS DP
2. Possible to connect PROFIBUS PA to the CI854B via the PROFIBUS linking device LD 800P
3. The CI854B can be set redundant
