ABB IMMFP12 Bailey Multifunction Processor Module
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail

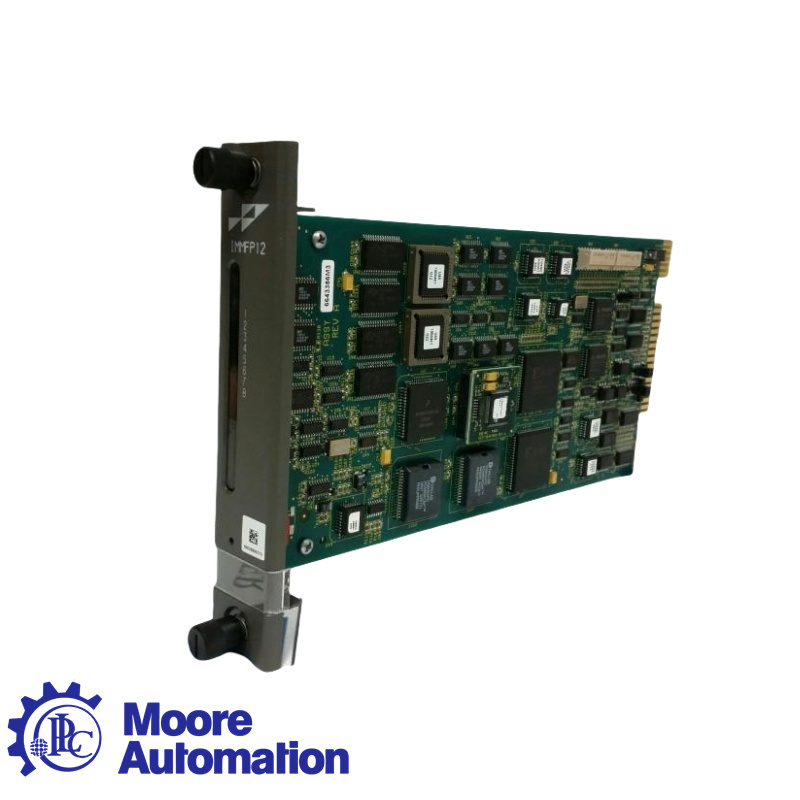

- Product NameABB IMMFP12 Bailey Multifunction Processor Module
- Item NO.IMMFP12
- Weight0.3000 kg = 0.6614 lb = 10.5822 oz
- CategoryDCS
- BrandABB
- Creation Time2025-01-09
Products info
|
|
Manufacturers: ABB Part number: IMMFP12 Original from: SWEDEN Description: SPS03-5V Power Supply, 5V, 60A
Microprocessor : 32 bit processor (16 bit external bus) running at 16 MHz
Memory Total : 512 kbytes ROM, 512 kbytes RAM, 256 kbytes NVRAM
Power Requirements : +5 VDC @ 2 A; 10 W typical
Serial Ports : Two RS-232-C ports, or one RS-485 and one RS-232-C port all of which link signals at a rate of up to 19.2 kbaud.
Station Support : Sixty-four 40-kbaud serial stations (IISAC01) or eight 5-kbaud serial stations (NDCS03 or NDIS01).
Redundant Communication Link Rate and Type : 1 Mbaud serial link.
Electromagnetic/Radio Frequency Interference : Values not available at this time. Keep cabinet doors closed. Do not use communication equipment any closer than 2 meters from the cabinet.
Programmability : C, BASIC, BATCH, ladder, function codes, and user-defined functions
Mounting : Occupies one slot in a standard INFI 90 OPEN module mounting unit
Ambient Temperature : 0° to 70°C (32° to 158°F)
Relative Humidity : 5% to 95% up to 55°C (131°F)(noncondensing) 5% to 45% above 55°C (131°F)(noncondensing)
Atmospheric Pressure : Sea level to 3 km (1.86 mi)
Air Quality : Noncorrosive
Certification : CSA certified for use as process control equipment in an ordinary (nonhazardous) location. Factory Mutual approved for use in Class I, Division 2, hazardous locations
Dimensions (HxWxD), approx : 17.78cm x 3.55cm x 29.84cm
Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
