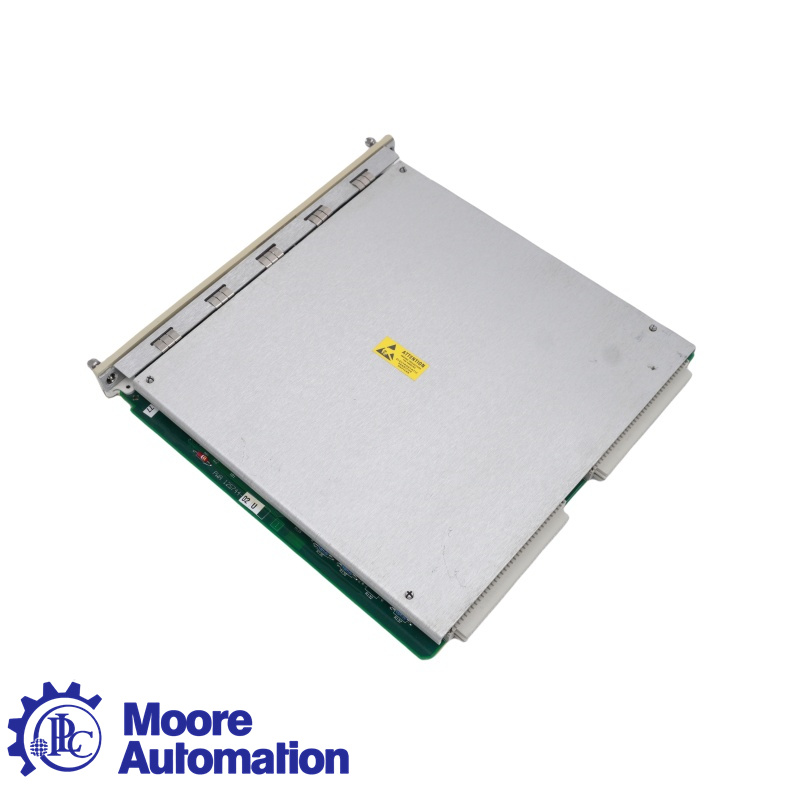

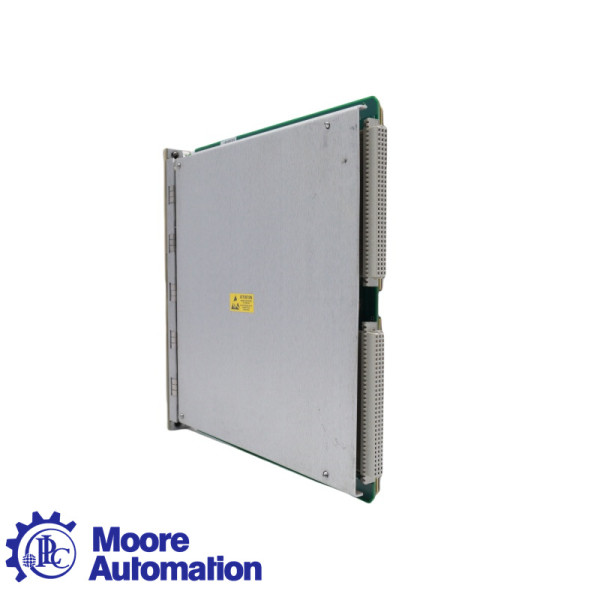

BENTLY NEVADA 125744-02 Rack Interface Module

Specifications

The 3500/20 is a rack interface module designed and developed by Bently Nevada. The main interface of the 3500 rack is the Rack Interface Module (RIM). It supports proprietary protocols for configuring racks and retrieving mechanical data. The rear integrated module must be placed in slot 1 of the rack. (Next to the power supply). RIM supports compatible Bently Nevada external communication processors such as TDXnet, TDIX, and DDIX. Although the post integration module performs certain functions shared by the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the entire monitoring system. Each rack requires one RIM.

The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies).

3500/20-AA-BB-CC

A: Rack Interface Type

0 1 = Standard RIM (Use for standard monitoring applications)

0 2 = TMR RIM (Use only for application that requires a Triple Modular Redundant Configuration)

B: Type of I/O Module

0 1 = I/O module with built-in modem

0 2 = I/O module with RS232/RS422 interface

C:Agency Approval Option

0 0 = None

0 1 = CSA/NRTL/C
