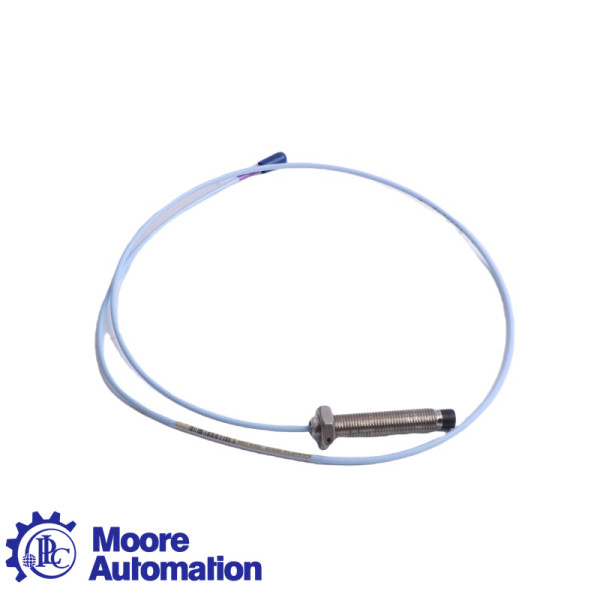

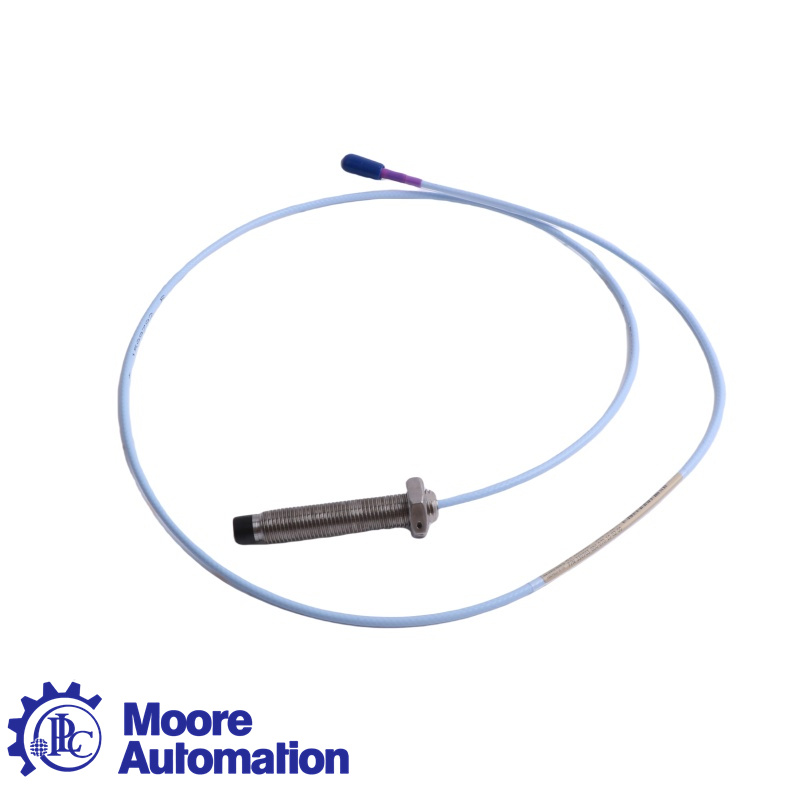

BENTLY NEVADA 330703-000-070-10-02-CN 3300 XL 11 mm Proximity Probe
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameBENTLY NEVADA 330703-000-070-10-02-CN 3300 XL 11 mm Proximity Probe
- Item NO.330703-000-070-10-02-CN
- Weight0.1000 kg = 0.2205 lb = 3.5274 oz
- CategoryPLC
- BrandBently Nevada
- Creation Time2024-12-30
Product details
|
Overview The 3300 XL 11mm Proximity Probe is a high-performance eddy current sensor developed by Bently Nevada, specifically designed for vibration and displacement monitoring in harsh industrial environments. It is widely used for the protection and condition monitoring of rotating machinery. It provides reliable and accurate data support for key equipment through high-precision non-contact measurement technology, helping users achieve more efficient and safe mechanical operation. |
|
Specifications Brand: BENTLY NEVADA Part number: 330703-000-070-10-02-CN Original from: USA Description: 3300 XL 11mm Proximity Probe Model: 330703 = 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor Unthreaded Length Option: 000 = 0 mm Overall Case Length Option: 070 = 70 mm Total Length Option: 10 = 1.0 metre (3.3 feet) Connector and Cable-Type Option: 02 = Miniature coaxial ClickLoc connector, standard cable Agency Approval Option: CN = ATEX/IECEx and Chinese NEPSI hazardous area marking Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
|
|
The 3300 XL 11 mm Proximity Transducer System consists of:
- 3300 XL 11 mm probe
- 3300 XL 11 mm extension cable
- 3300 XL 11 mm Proximitor Sensor1
The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System. It is primarily used in the following applications where the longer linear range is necessary:
- Axial (thrust) position measurements
- Ramp differential expansion measurements on steam turbines
- Rod position or rod drop measurements on reciprocating compressors
- Tachometer and zero speed measurements
- Phase reference (Keyphasor) signals
3300 XL 11 mm Proximity Probes
Total Length Option
10 = 1.0 meter (3.3 feet)
50 = 5.0 meters (16.4 feet)
90 = 9.0 meters (29.5 feet)
Agency Approval Option
00 = Not required
05 = Multiple Approvals
Part Number: 330703-AAA-BBB-CC-DD-EE
