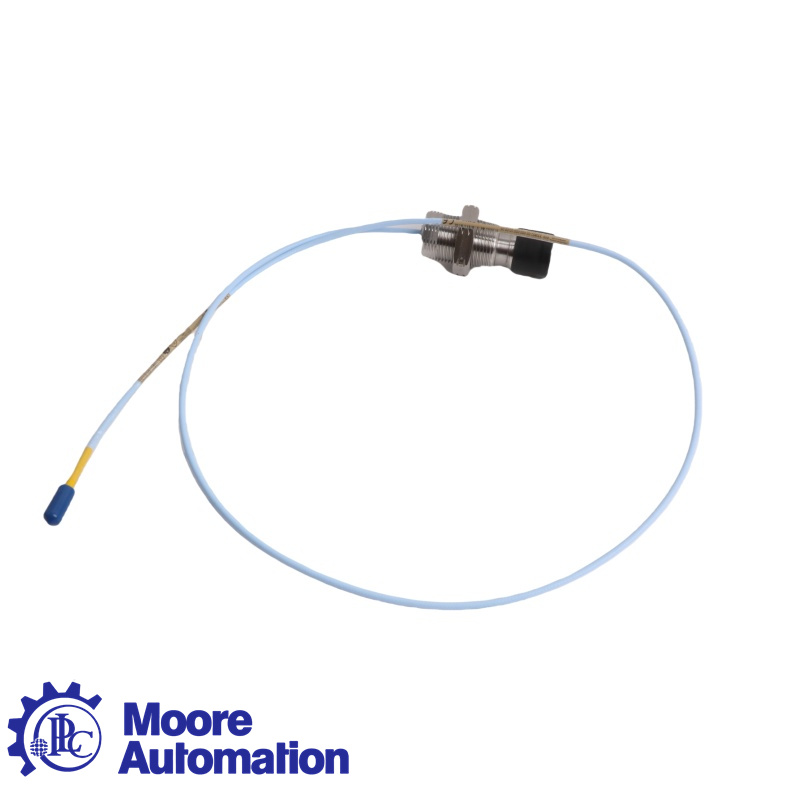

BENTLY NEVADA 330851-02-000-050-10-00-05 3300 XL 25 mm Proximity Probe
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameBENTLY NEVADA 330851-02-000-050-10-00-05 3300 XL 25 mm Proximity Probe
- Item NO.330851-02-000-050-10-00-05
- Weight3.0000 kg = 6.6139 lb = 105.8219 oz
- CategoryPLC
- BrandBently Nevada
- Creation Time2024-12-26
Specifications
|
The 3300 XL 25 mm Proximity Probe is a high-precision, non-contact displacement sensor designed specifically for condition monitoring and protection of large rotating equipment in the industrial field, such as turbines, compressors, and generators. Its main function is to monitor the shaft displacement, vibration, and clearance of the equipment in real time through eddy current induction technology, ensuring the reliable operation of the equipment and timely fault warning. |
|
Brand: BENTLY NEVADA Part number: 330851-02-000-050-10-00-05 Original from: USA Description: 3300 XL 25 mm Proximity Probe Probe Case Type Option : 02 = M30x2 Thread Unthreaded Length Option : 000 = 0 in Overall Case Length Option : 050 = 50 mm Total Length Option : 10 = 1.0 metre (3.3 feet) Armor Option : 00 = No armor Agency Approval Option : 05 = Having multiple institutional approvals
Linear range: 12.7 millimeters (500 mils). Output sensitivity: 0.787 V/mm (20 mV/mil). Frequency response: 0 to 2.7 kHz, typical value, field wiring up to 305 meters (1000 feet) in length. Recommended minimum target size: A flat target with a diameter of 61 millimeters (2.4 inches). Probe tip material: polyetheretherketone (PEEK). Probe housing material: AISI 304 stainless steel. Cable type: 75 Ω triaxial, PFA (perfluoroalkoxy ethylene) insulation, with FluidLoc design to prevent oil from entering the cable. Protection level: IP68.
Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
Features
The 3300 XL 25 mm probe can be used in the toughest turbine DE settings. It can operate continuously and accurately at temperatures up to 200 ° C, and can resist intermittent high temperatures up to 250 ° C. The 25mm probe has front and rear seals, which prevent moisture from entering the probe tip when used in conjunction with FluidLoccable (standard configuration for all 25mm probes).
Special high-temperature connections are also standard on the proben and extension cable. In order to protect the connector from contamination, each probe and
cable is equipped with a connector protector and a disposable connector protector installation tool.
The ClickLoc connector for probe leads includes a detachable loop that allows cables to pass through narrow spaces.
