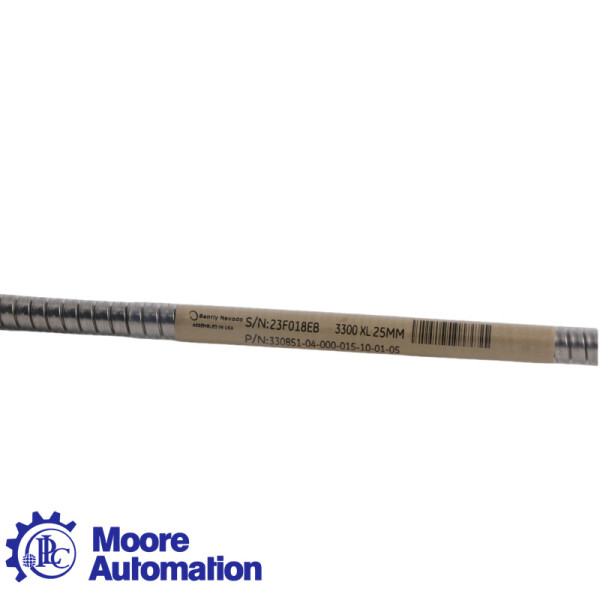

- Product NameBENTLY NEVADA 330851-04-000-015-10-01-05 3300 XL 25 mm Proximity Probe
- Item NO.330851-04-000-015-10-01-05
- Weight3.0000 kg = 6.6139 lb = 105.8219 oz
- CategoryPLC
- BrandBently Nevada
- Creation Time2024-12-26
Products details
|
|

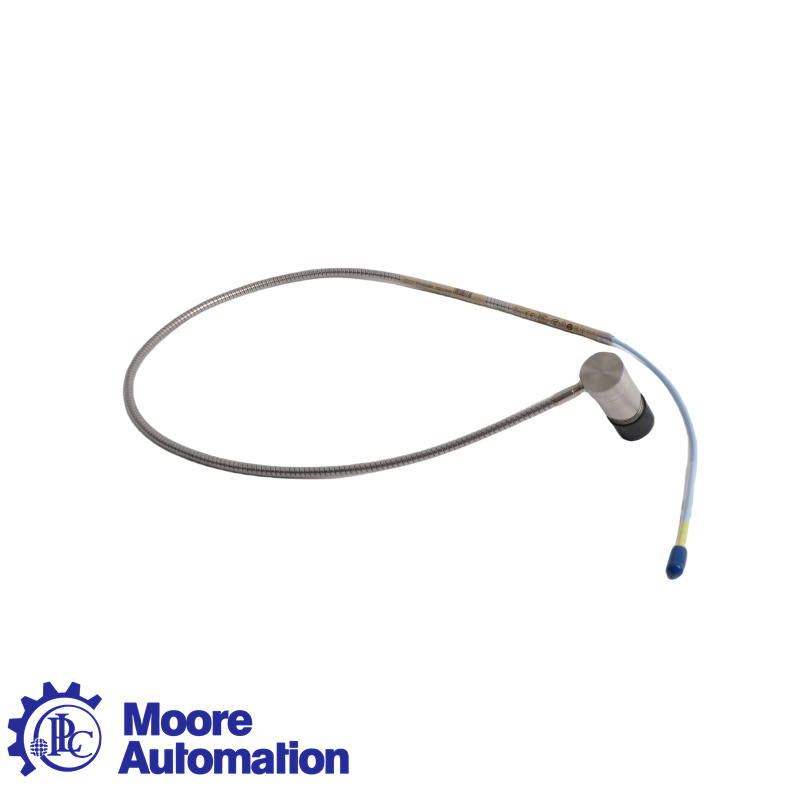

The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing). |
|
Brand: BENTLY NEVADA Part number: 330851-04-000-015-10-01-05 Original from: USA Description: 3300 XL 25 mm Proximity Probe Probe diameter: 25mm Linear range: usually 0-12mm, with linear accuracy within the full range. Sensitivity: The standard sensitivity is 7.87 mV/µ m (200 mV/mil). Measurement accuracy: Measurement accuracy that meets or exceeds the API 670 standard. Frequency response: capable of capturing vibration and displacement signals from low to high frequencies, typically ranging from 0-10 kHz.
Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
|
The 3300 XL Proximity Probe is a part of Bently Nevada’s range of vibration and condition monitoring products. This probe is engineered for high-precision measurement in demanding industrial environments, where continuous monitoring of machinery health is crucial for maintaining operational efficiency and preventing equipment failures.
The 25mm version specifically refers to the probe's sensitive tip that is installed 25mm from the target shaft or surface. This distance provides an ideal balance between measurement accuracy and installation flexibility in various applications.
