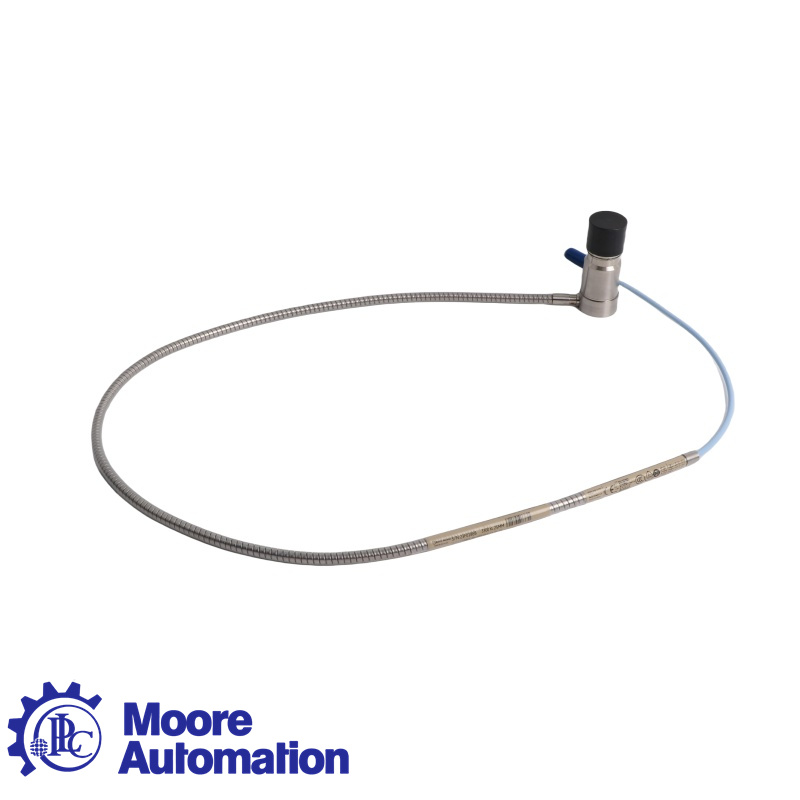

BENTLY NEVADA 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameBENTLY NEVADA 330851-04-000-030-10-00-05 3300 XL 25 mm Proximity Probe
- Item NO.330851-04-000-030-10-00-05
- Weight3.0000 kg = 6.6139 lb = 105.8219 oz
- CategoryPLC
- BrandBently Nevada
- Creation Time2024-12-26
Products details
|
|
The 3300 XL 25 mm Transducer System consists of a separate 25 mm probe, an extension cable, and a 3300 XL 25 mm Proximitor Sensor. The 0.787 V/mm (20 mV/mil) output gives this system a linear range of 12.7 mm (500 mils). Based on this linear range, the 3300 XL 25 mm Transducer System is suitable for measuring differential expansion (DE) on mid size to large steam turbine generators caused by the difference in growth rates between the turbine rotor and the machine stator (casing). |
|
Brand: BENTLY NEVADA Part number: 330851-04-000-030-10-00-05 Original from: USA Description: 3300 XL 25 mm Proximity Probe Probe Case Type Option : 04 = M30x4 Thread Unthreaded Length Option : 000 = 0 in Overall Case Length Option : 030 = 30 mm Total Length Option : 10 = 1.0 metre (3.3 feet) rmor option: 00=no armor Agency Approval Option : 05 = Having multiple institutional approvals Working temperature range: Probe:- 35 ° C to+200 ° C (-31 ° F to+392 ° F). Extension cable:- 35 ° C to+200 ° C (-31 ° F to+392 ° F). Pre processor:- 35 ° C to+85 ° C (-31 ° F to+185 ° F). Probe tip material: polyetheretherketone (PEEK). Probe housing material: AISI 304 stainless steel. Cable type: 75 Ω coaxial, PFA (perfluoroalkoxy ethylene) insulation, with FluidLoc design to prevent moisture from entering the probe end. Protection level: IP68 Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
|
The 3300 XL Proximity Probe is a part of Bently Nevada’s range of vibration and condition monitoring products. This probe is engineered for high-precision measurement in demanding industrial environments, where continuous monitoring of machinery health is crucial for maintaining operational efficiency and preventing equipment failures.
The 25mm version specifically refers to the probe's sensitive tip that is installed 25mm from the target shaft or surface. This distance provides an ideal balance between measurement accuracy and installation flexibility in various applications.
Bently 3500 Monitoring system
Bently 3300 Monitoring system
Contact info
|
Sales manager: |
WhatsApp: |
Email: |
Skype: |
|
Yuki |
Our service
1)100% full New! - Original Factory Seal !
2) Warranty: 12 months!
3) Package: Original packing with cartons.
4) Delivery time: Shipped in 3 days after payment
