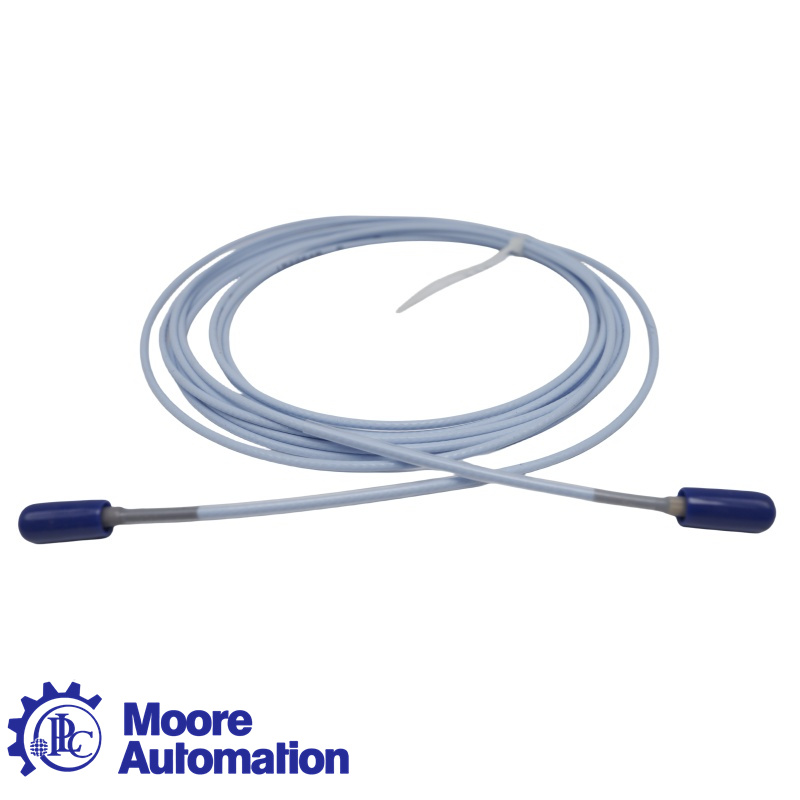

BENTLY NEVADA P3403893-00006 3300 XL Standard Extension Cable
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameBENTLY NEVADA P3403893-00006 3300 XL Standard Extension Cable
- Item NO.P3403893-00006
- Weight3.0000 kg = 6.6139 lb = 105.8219 oz
- CategoryPLC
- BrandBently Nevada
- Creation Time2024-12-29
Specifications
|
The 3300 NSv Extension Cable is a specially designed extension cable by Bently Nevada for the 3300 NSv series non-contact eddy current sensor system, used to connect the probe and preamplifier to ensure efficient signal transmission. It is particularly suitable for vibration and displacement monitoring of space limited or small rotating machinery. |
|
|
|
Brand: BENTLY NEVADA Part number: P3403893-00006 Original from: USA Description: 3300 NSv Extension Cable Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
3300 NSv Extension Cable (330930-AAA-BB-CC)
Cable Length Option
040 = 4.0 meters (13.1 feet)
045 = 4.5 meters (14.8 feet)
060 = 6.0 meters (19.7 feet)
065 = 6.5 meters (21.3 feet)
Agency Approval Option
00 = Not Required
05 = Multiple Approvals
sales6@askplc.com
+86 17359287459
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
- Radial vibration and radial position measurements
- Axial (thrust) position measurements
- Tachometer and zero speed measurements
- Phase reference (Keyphasor signals)
Bently parts
|
125680-01 |
3500/40M |
|
125840-02 |
149992-01 |
|
133819-01 |
125680-01 |
|
136188-02 |
125720-01 |
|
140471-01 |
125760-01 |
|
149992-01 |
125768-01 |
|
172103-01 |
125840-02 |
|
3500/22M 288055-01 |
128229-01 |
|
3500/33 149986-01 |
128240-01 |
|
3500/40M 176449-01 |
133323-01 |
|
3500/60 163179-01 |
133396-01 |
|
3500/72M 176449-08 |
133819-01 |
|
330180-50-00 |
135137-01 |
|
330130-045-00-00 |
136188-02 |
|
330180-51-05 |
146031-01 |
|
330130-040-00-05 |
172103-01 |
|
330103-00-10-10-02-05 |
172109-01 |
|
330103-00-05-05-02-00 |
330101-00-08-05-02-00 |
|
330180-51-00 |
330103-00-04-10-02-00 |
|
330103-00-03-05-02-00 |
330104-00-06-05-02-00 |
|
330103-00-10-10-02-00 |
330104-00-10-10-02-00 |
|
330730-040-00-00 |
330104-00-18-10-02-00 |
|
330780-90-00 |
330105-02-12-05-02-00 |
|
330180-91-00 |
330106-05-30-05-02-00 |
|
3500/25 149369-01 |
330106-05-30-10-02-05 |
|
3500/33 149986-01 |
330130-040-00-00 |
|
3500/20 125744-02 |
330130-040-01-00 |
|
134652-01 |
330180-91-05 |
|
330104-00-05-05-02-00 |
3500/20 |
|
3500/32M |
3500/45 |
|
140471-01 |
3500/60 |
