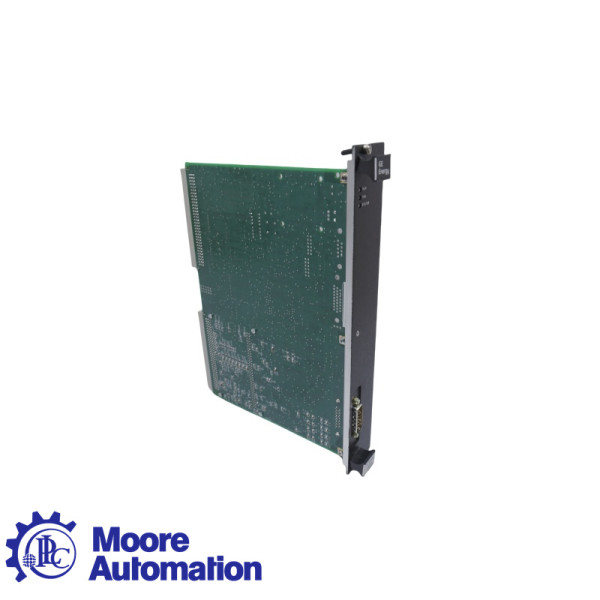

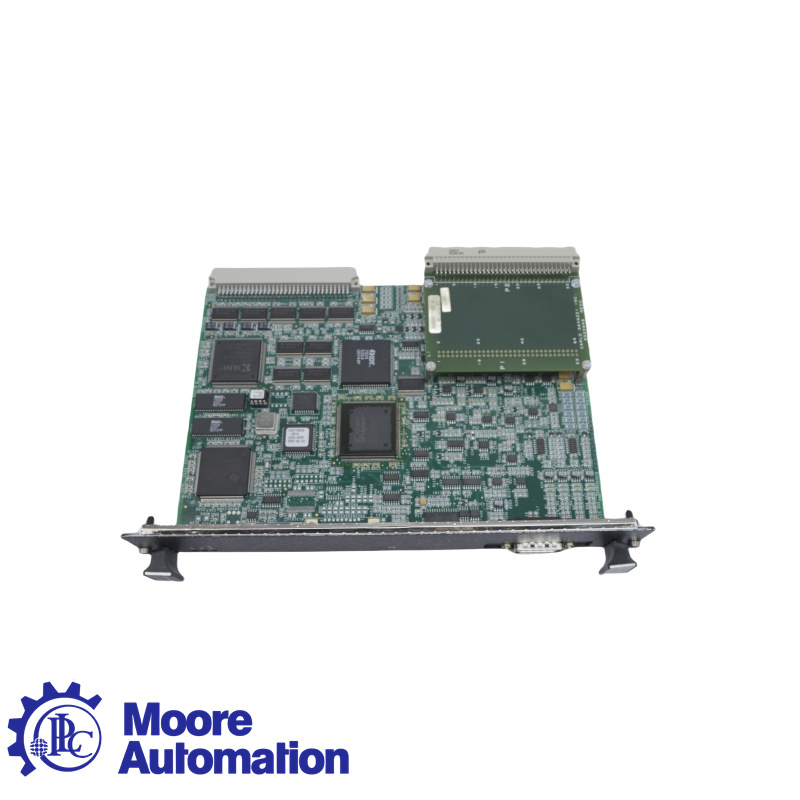

GE IS200UCVEH2A UCVE Controller Module NEW
Warranty: 1 year warranty
Condition : brand new in factory sealed box
Chat online: +8617359287459 (whatsapp)
Email: sales6@askplc.com
Detail
- Product NameGE IS200UCVEH2A UCVE Controller Module NEW
- Item NO.IS200UCVEH2A
- Weight2.0000 kg = 4.4092 lb = 70.5479 oz
- CategoryPLC
- BrandGE
- Creation Time2024-12-12
|
Contact info |
|
|
Sales manager: |
WhatsApp: |
Email: |
Skype: |
|
Yuki |
|
Product info |
|
|
Brand: GE Part number: IS200UCVEH2A Original from: USA Description: UCVE Controller Module
Series: Mark VIe Input Voltage Range: 3.3V to 5V DC Signal Voltage Levels: TTL/CMOS compatible Maximum Delay Compensation: Up to 100 ns Clock Frequency: Up to 200 MHz Operating Temperature Range: -30°C to +85°C Dimensions: 25 mm x 25 mm x 5 mm Mounting Type: Surface-mount technology
Availability: In Stock Part Type: New Customs Tariff: 8537101190 Shipping from: Xiamen, Fujian MAQ: 1 PC |
|
|
IS200UCVEH2A is a UCVE Controller Module manufactured and designed by General Electric as part of the Mark VIeS Series used in GE Distributed Turbine Control Systems. It features a 300 MHz Intel Celeron processor, providing adequate processing power for control and monitoring tasks. The board is equipped with either 16 or 128 MB of flash memory, offering storage for system firmware and software applications. The UCVEH2 is the standard Mark VI controller in the following figure. It is a single-slot board using a 300 MHz Intel Celeron processor with 16 Mb of flash memory and 32 Mb of DRAM. A single 10BaseT/100BaseTX (RJ-45) Ethernet port provides connectivity to the UDH. The UCVEM_ _ modules have all the features of the UCVEH2 with the addition of supporting additional Ethernet ports and Profibus. Some UCVEM_ _ modules support secondary 10BaseT/100BaseTX Ethernet ports for use on a separate IP logical subnet. Configuration of the secondary Ethernet port is performed through the toolbox. The controller validates its toolbox configuration against the existing hardware each time the rack is powered up. A separate subnet address allows the controller to uniquely identify an Ethernet port.
|
|
|
FAQ |
|
|
Q: Do you provide warranty for these goods? A：Yes, we provide warranty for all of our goods. Q：Can you provide technical support? A：We have been working in this field for over 20 years. If you have any questions, please contact us and we will provide engineer advice to help you solve the problem. Q：Do you have inventory or only engage in transactions? A：We have a large warehouse for goods. We have a lot of goods in our warehouse, so we can guarantee fast delivery. Q：Are your goods new or original? A：Yes, they are new and original. |
|
|
