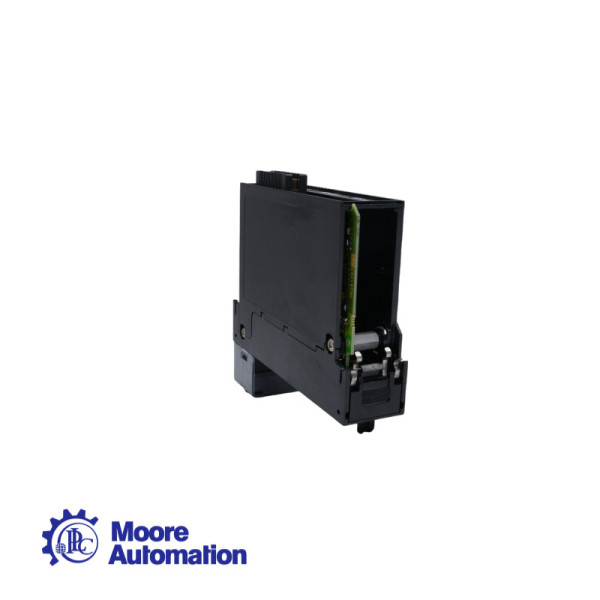

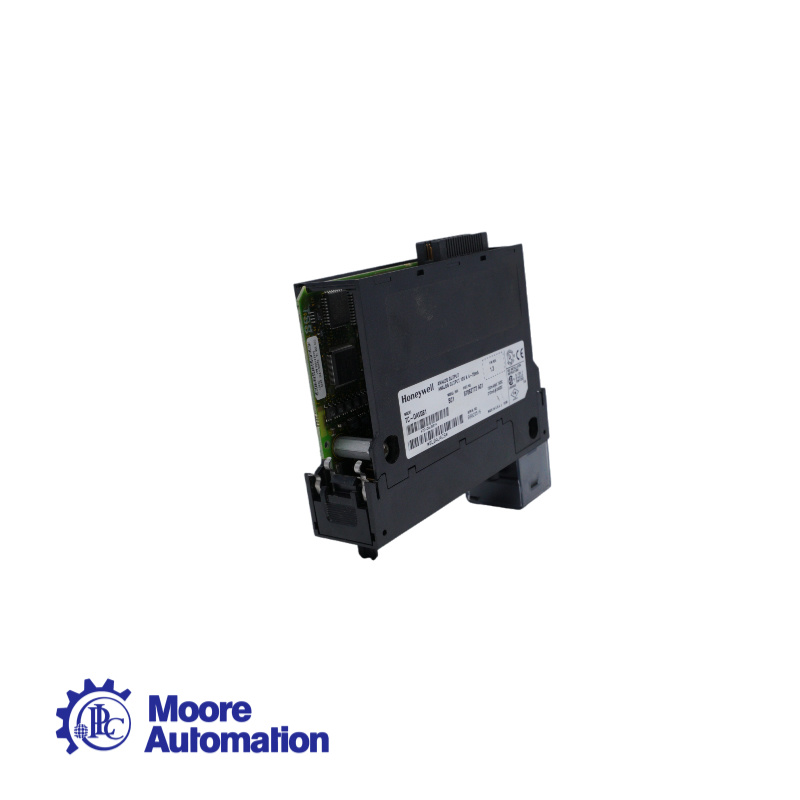

Honeywell TC-OAV081 Analog Output Module

Product Detail

Part Number:TC-OAV081
Manufacturer:Honeywell
Condition:Brand New & in Stock
Product Type:Analog Output Module
Origin:USA
Shipping Detail:Fedex and UPS etc
Warranty:12 months

Specifications of Honeywell TC-OAV081 Analog Output Module:
Number of Points: 8 channels
Voltage Output Range: -10.4 V to +10.4 V
Current Output Range: 0 to 21 mA
Voltage Resolution: 320 µV per count
Current Resolution: 650 µA per count
Output Overvoltage Protection: 24 VAC/VDC continuous at room temperature
Open Short Circuit Protection: Electronically current limited to 21 mA or less
Calibrated Accuracy @ 25°C:Better than 0.05% of range From 4 to 21 mA (Current)
From –10.4V to +10.4V (Voltage)
RFI Immunity: Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
Module Update Rate for All Channels: 25 ms
Output Settling Time: Less than 2 ms to 95% of final value with resistive loads
Power Dissipation: 6.9 W max
Connection Terminal Blocks: TC-TBNH, 20-position terminal block
Dimensions:4*14*15cm,0.24kg

Description

The Honeywell 621-1100RC Input Module is designed for industrial control systems, featuring precision and reliability in handling critical input signals for various applications.

The Honeywell TC-OAV081 is an 8-channel analog output module for the Honeywell C300 controller. It is a single-slot module that can provide up to 8 analog outputs. The module has a wide range of output options, including voltage, current, and resistance. It also has a variety of features, such as programmable scaling, filtering, and limiting.
